RS20 Skid Steer
in stock

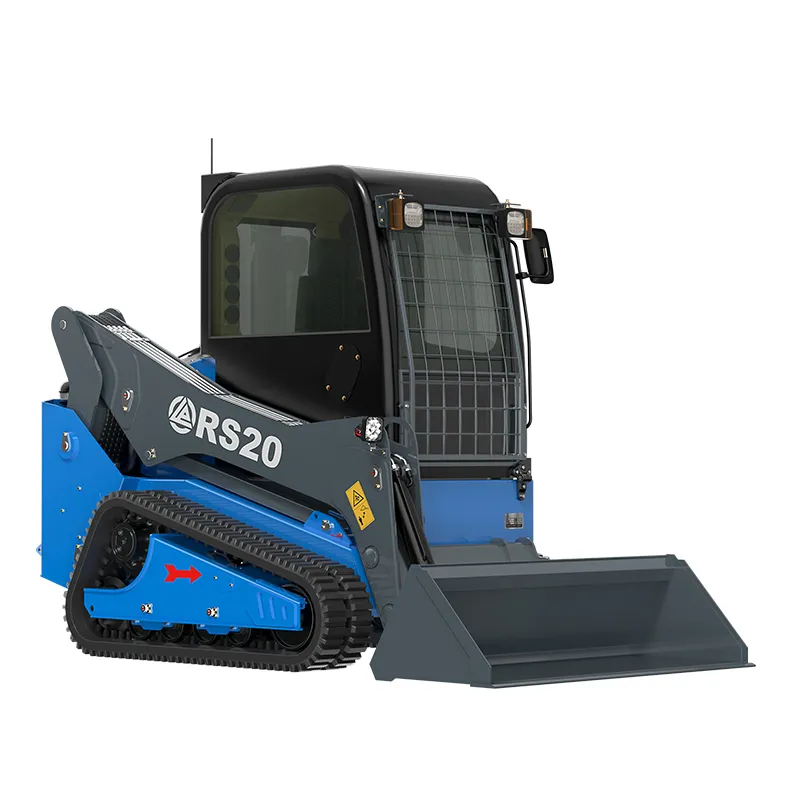

RS20 Skid Steer

The RIPPA RS20 is a heavy-duty 4.2-ton skid steer loader built for large-scale construction sites, mining, and industrial applications. Equipped with the Yanmar 4TNV98C-PLYS diesel engine, the RS20 delivers powerful output, high flow hydraulics, and reliable performance under extreme working conditions.

With its enlarged wheelbase for stability, four-pump hydraulic system, and compatibility with dozens of attachments, the RS20 is designed to maximize productivity while keeping operators comfortable with a spacious cab, ergonomic controls, and full climate control.

Category Tag Brand:

  • Operating Weight: 9,295 lbs (4225 kg)

  • Transport Length (with bucket): 150.4 in (3820 mm)

  • Transport Length (without bucket): 119.7 in (3040 mm)

  • Transport Width: 72.8 in (1850 mm)

  • Transport Height: 96.9 in (2460 mm)

  • Bucket Width: 72.8 in (1850 mm)

  • Ground Clearance (min): 9.1 in (230 mm)

  • Engine Brand: Yanmar

  • Engine Model: 4TNV98C-PLYS

  • Horsepower: 66.7 hp (49.9 kW) @ 2400 rpm

  • Displacement: 3.319 L

  • Cylinders: 4

  • Cooling: Water + air cooling

  • Max Torque / Fuel Efficiency: High torque with low fuel consumption design

  • Bucket Capacity: 0.4 m³ (14.1 ft³)

  • Rated Load (Safe Load): 2310 lbs (1050 kg)

  • Maximum Load: 4620 lbs (2100 kg)

  • Travel Speed (low/high): 0–3.1 / 0–6.2 mph (0–5 / 0–10 km/h)

  • Gradeability: 25%

  • Ground Pressure: 7.57 psi (52.16 kPa)

  • Maximum Loading Height: 147.6 in (3750 mm)

  • Maximum Unloading Height: 88.6 in (2250 mm)

  • Maximum Unloading Distance: 53.5 in (1360 mm)

  • High-Performance Engine – Yanmar diesel power with low fuel use and low noise

  • Hydraulic Quick Coupler – 30-second attachment changes

  • Multi-Attachment Compatibility – augers, breakers, grapples, snowplows, forks, dozer blades, 4-in-1 buckets, compactors, and more

  • Operator Comfort – air-conditioned cab, ergonomic joystick controls, adjustable suspension seat, LCD display, and integrated radio

  • Ergonomic Design – centralized switches and optimized joystick layout

  • Maintenance-Friendly – rear guard opens fully, cab tilts back for servicing, grouped maintenance points for easy access

  • Pump System: Four-pump hydraulic system

    • Tandem closed-loop pumps (108 + 108 L/min)

    • Internal charge pump

    • Gear pump (35.7 L/min)

  • Working Pump Type: Plunger pump

  • Working Pressure: 21 MPa (3045 psi)

  • Travel Pump Pressure: 32.5 MPa (4713.8 psi)

  • Auxiliary Hydraulics: Two main auxiliary lines + one unloading line (quick coupler compatible)

The RIPPA RS20 Skid Steer Loader is backed by:

  • 2-Year Full Machine Warranty (Parts & Service)

  • 5-Year / 5,000-Hour Yanmar Engine Warranty

This ensures peace of mind with full coverage on the machine for the first two years, along with extended protection on the engine — the heart of the RS20. Replacement parts are shipped directly to the customer’s address, and service support is available as needed. Wear items such as tracks, hoses, filters, and fluids are excluded.

Available Attachments

Energy-efficient engine

Equipped with a high-power engine, it increases the flow of the whole machine and meets various operational needs. The engine has ultra-low emissions and high fuel efficiency, which is energy-saving and efficient. The dual-speed motor can reach a maximum speed of 9km/h, which can quickly respond to emergency work needs.

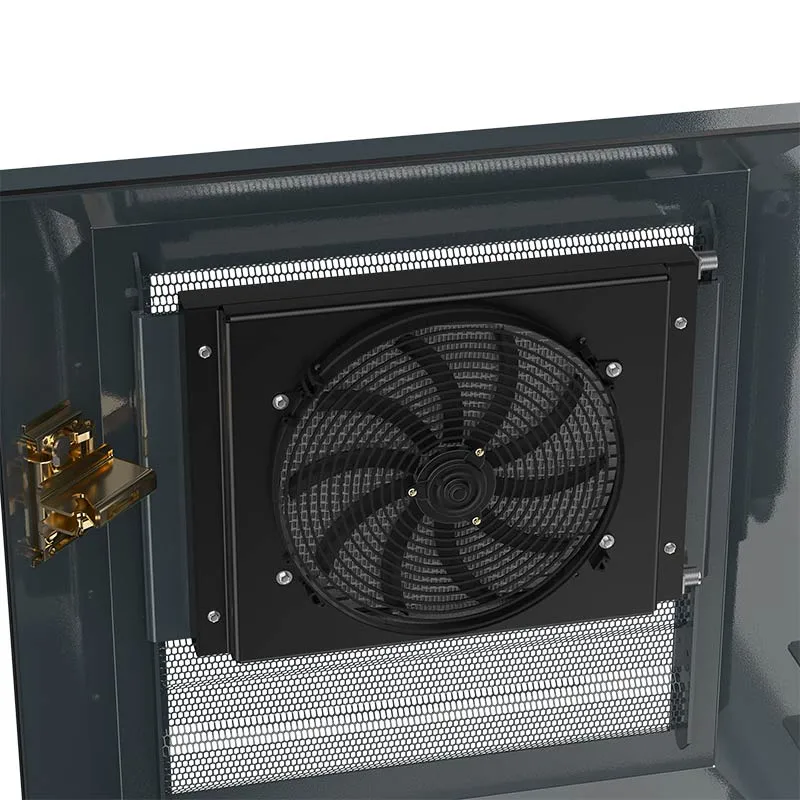

Double row fan

The RS20 skid loader double-row fan has core selling points such as efficient heat dissipation, energy saving and environmental protection, and intelligent control. Its double-row fan design increases the heat dissipation area, ensuring that the equipment remains low temperature during high-intensity work and prolongs its service life. The fan speed is adjustable to adapt to a variety of working environments, and the intelligent start-stop function is used to effectively reduce energy consumption.

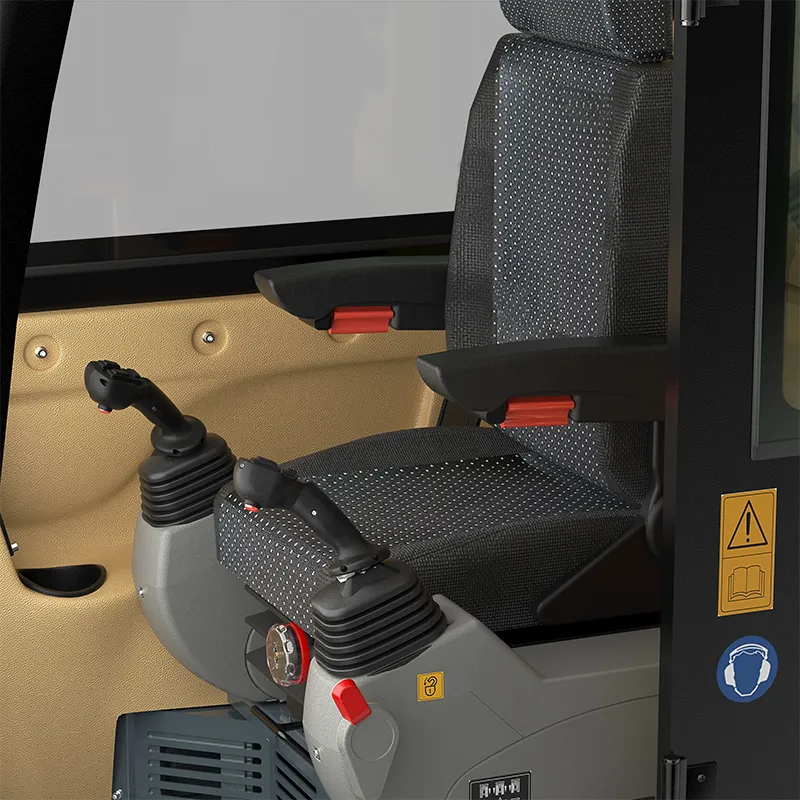

Comfortable opperating environment

RIPPA skid steer loader introduces the concept of “functional area” and isdesigned based on user operating comfort. Luxurious adjustable seats withshock absorption and seat belts, and ergonomically controlled electroniccontrol handles give drivers a different driving experience. The rockerswitch of the whole machine is integrated on the left column of the cab.Some commonly used hom and accessory control switches (such as planercylinder control switches) are integrated on the left and right joysticks(optional).

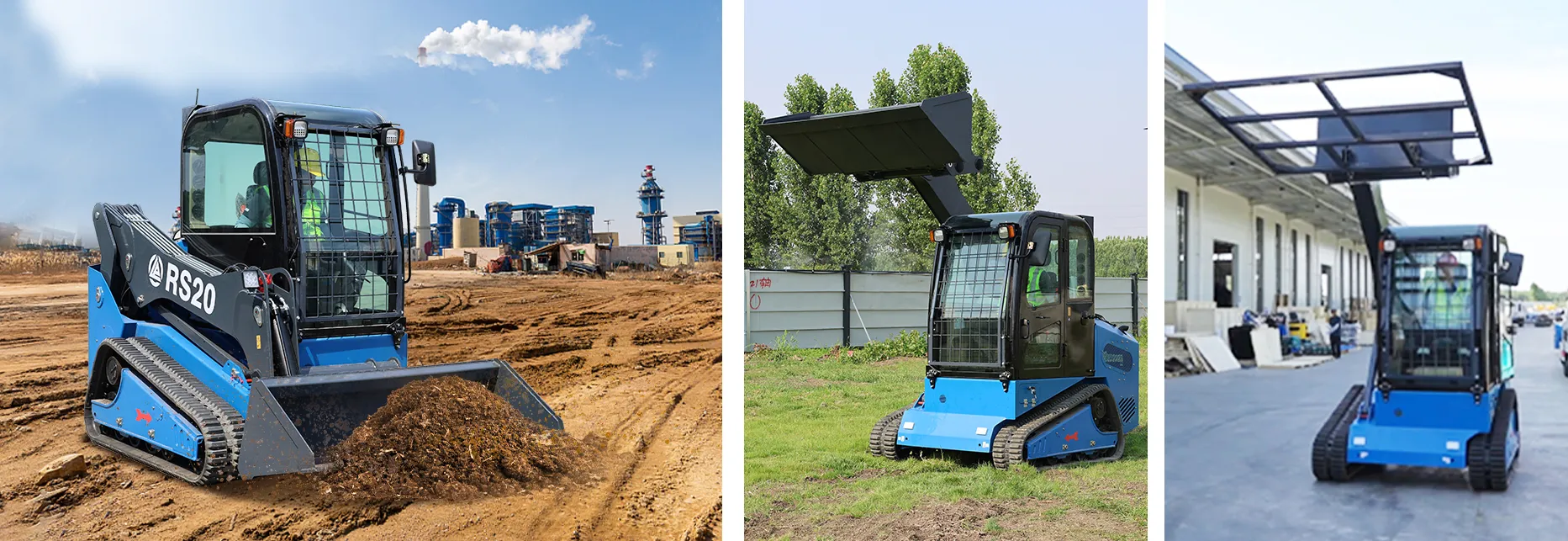

Multipurpose Tool Carrier

The advantages of the RIPPA RS20 skid steer loader in terms of performance, comfort, ease of maintenance, versatility and brand strength help attract potential customers in the export trade.
