RS04 Skid Steer
in stock

RS04 Skid Steer

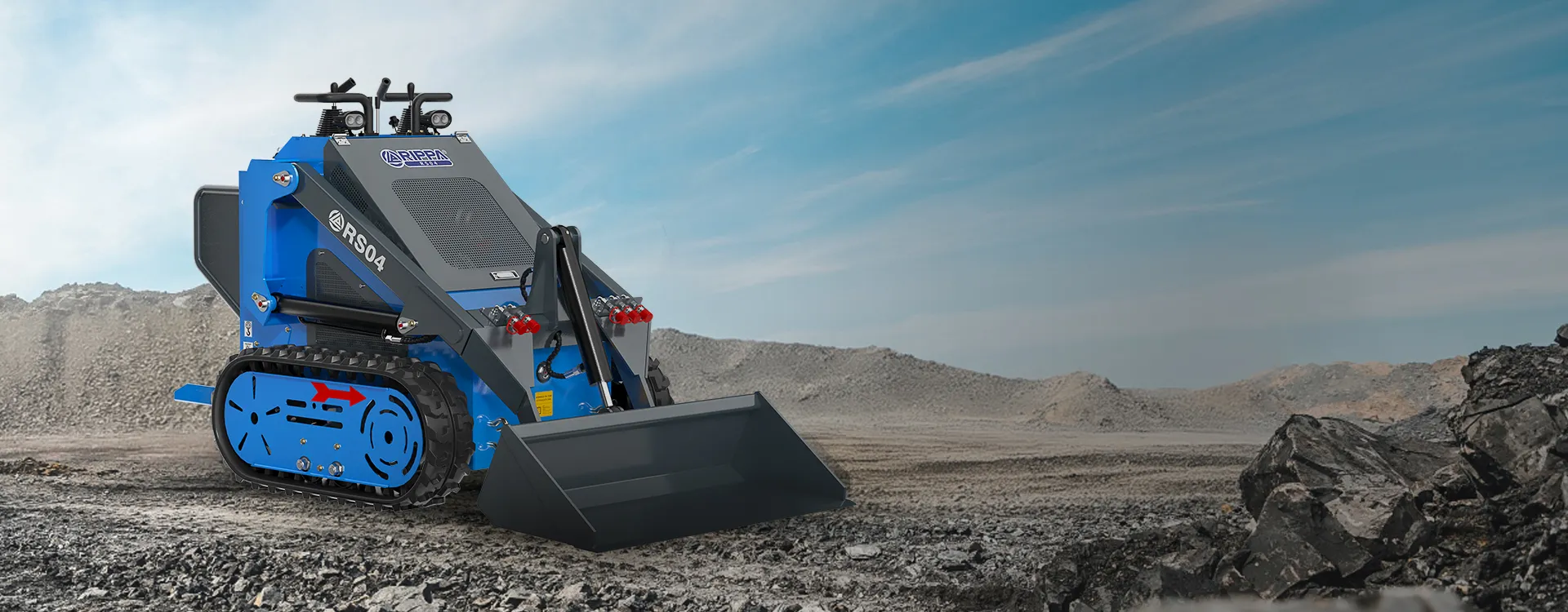

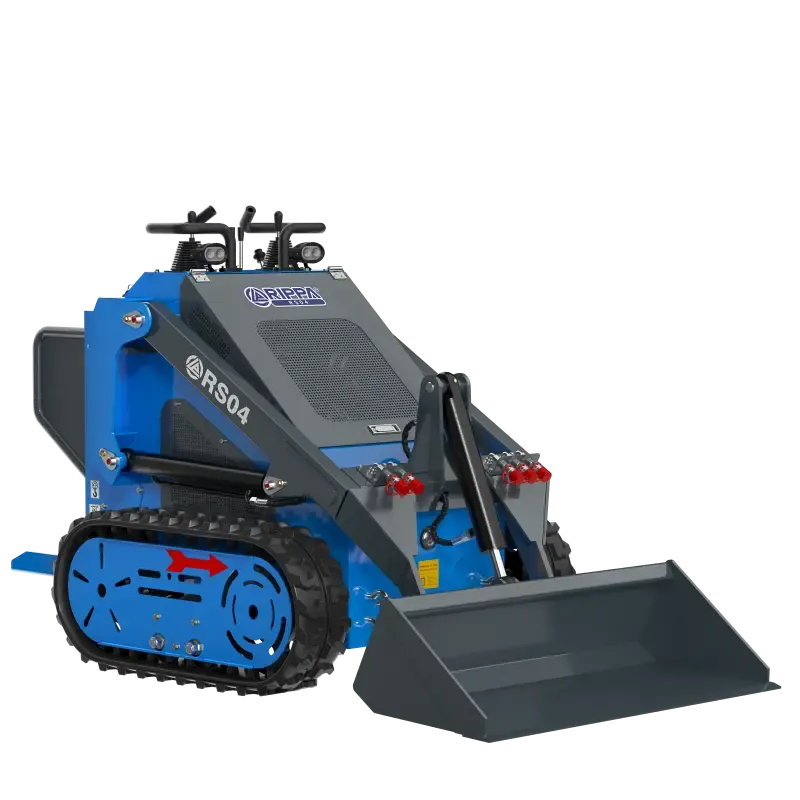

The RIPPA RS04 Skid Steer Loader delivers powerful performance in a compact footprint. Equipped with the reliable Kubota Z482 twin-cylinder diesel engine, this machine offers low fuel consumption, reduced noise, and dependable operation under heavy load. With a modular track/wheel conversion system, a triple gear pump for smooth hydraulics, and compatibility with a wide range of attachments, the RS04 is built for contractors, landscapers, and rental operations who need versatility and efficiency on the jobsite.

Category Tag Brand:

  • Operating Weight: 1,958 lbs (890 kg)

  • Transport Length (with bucket): 77.6 in (1970 mm)

  • Transport Length (without bucket): 59.8 in (1520 mm)

  • Transport Width: 45.3 in (1150 mm)

  • Transport Height: 51.2 in (1300 mm)

  • Bucket Width: 45.3 in (1150 mm)

  • Ground Clearance: 4.3 in (108 mm)

  • Engine Brand/Model: Kubota Z482

  • Horsepower: 11.1 HP (8.3 kW)

  • Displacement: 0.479 L

  • Cylinders: 2

  • Rated Speed: 3,220 rpm

  • Cooling Method: Water-cooled

  • Fuel Type: Diesel

  • Fuel Consumption: 0.8–1.2 L/hr

  • Bucket Capacity: 0.15 m³ (5.3 ft³)

  • Rated Load (Safe Load): 385 lbs (175 kg)

  • Max Load: 880 lbs (400 kg)

  • Max Unloading Height: 61.1 in (1553 mm)

  • Max Loading Height: 81.9 in (2080 mm)

  • Max Unloading Distance: 21.7 in (550 mm)

  • Travel Speed (Low/High): 0–2.5 km/h (0–1.86 mph)

  • Gradeability: 25%

  • Ground Pressure: 25.17 kPa (3.7 psi)

  • Modular Mobility System – quick track-to-wheel conversion for different terrains

  • Pilot-Style Hydraulic Controls – smooth, responsive operation

  • Attachment Versatility – runs buckets, grapples, dozer blades, 4-in-1 buckets, breakers, augers, snowplows, compactors, and more

  • Self-Locking Auxiliary Lever – safer and easier hydraulic control

  • Protective Hose Routing – built-in pipe arrangement reduces wear and extends service life

  • Multifunction Display – real-time monitoring of fuel, hydraulics, and system temperature

  • Front & Rear Lifting Rings – for balanced lifting, towing, and transport safety

  • Anti-Slip Pedals – safe access in muddy or wet conditions

  • Main Pump: Triple gear pump system (14.4 + 9.6 + 9.6 L/min)

  • Multi-Way Valve: Three-way, two-line mechanical valve

  • Auxiliary Hydraulics: 4 independent auxiliary lines + 1 return line

  • Travel Motor: Deston BM5-315

  • Quick Coupler: Industry-standard, 30-second attachment changes

The RIPPA RS04 Skid Steer Loader is protected by a 1-Year Full Machine Warranty, covering all major components and systems.

In addition, the Kubota Z482 diesel engine is backed by a 2-Year Manufacturer’s Warranty, ensuring long-term reliability and peace of mind for the most critical part of your machine.

All warranty parts are shipped directly to the customer’s address, with technical support available as needed. Wear items such as tracks, hoses, filters, and fluids are not covered.

Available Attachments

Energy-efficient engine

The engine adopts well-known brands such as Kubota, providing a compact and powerful power design, while maintaining low fuel consumption, low vibration and low noise, achieving a high level of environmental protection. The standard speed mode adjustment function can automatically adjust the engine speed according to the working mode through simple operation, improving the humanization and flexibility of the operation.

Convenient operation design

Equipped with a single-lever operating handle, it can easily achieve forward, backward, turn and other actions, with high and low speed functions, easy to operate. It provides a safe and all-round operating experience to ensure the safety of operators in different working scenarios.

Quick change device

The skid steer loader is equipped with a quick-change device, which enables convenient and efficient replacement of auxiliary equipment, greatly improving operational flexibility and work efficiency.

Multipurpose Tool Carrier

The RS04 skid steer loader has significant advantages in the skid steer loader market with its core selling points such as versatility, compact design, powerful power, safety design, efficient maintenance and all-round operation, and can meet the needs of various projects and operations.
