RS03 Skid Steer
WhatsApp
Get a quote
RS03 Skid Steer
in stock

RS03 Skid Steer

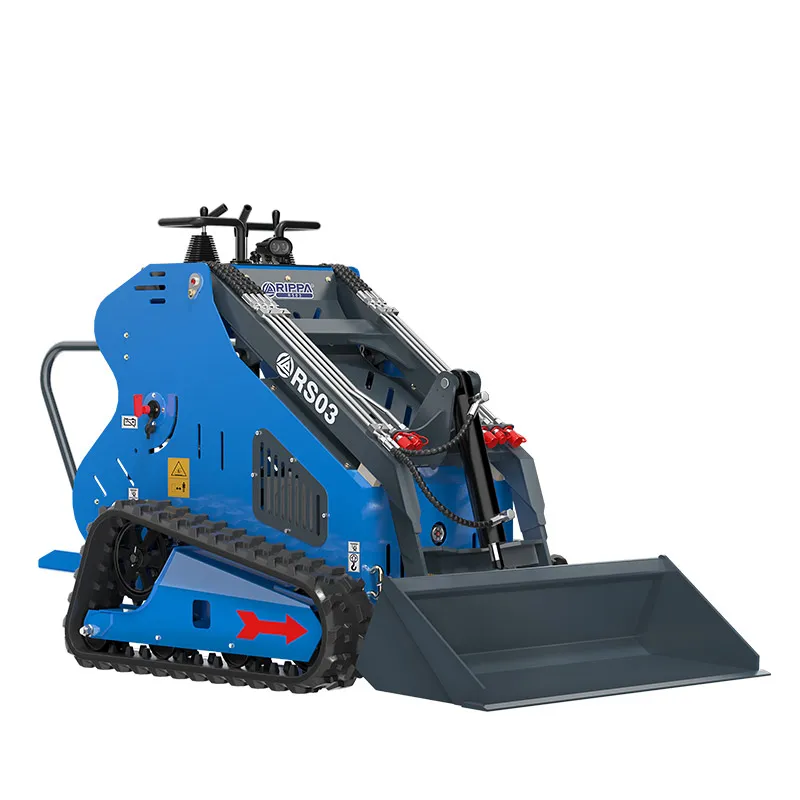

The RIPPA RS03 Skid Steer Loader is a compact and versatile machine engineered for light-to-medium duty tasks in construction, landscaping, and agricultural work. Built for efficiency in tight job sites, the RS03 features a reliable diesel engine, smooth hydraulic performance, and the ability to handle a wide variety of attachments. With its strong lifting capacity and compact footprint, this machine is an ideal choice for contractors, farmers, and equipment rental fleets.

Category Tag Brand:

  • Operating Weight: 1,543 lbs (700 kg)

  • Transport Length: 90.6 in (2300 mm)

  • Transport Width: 35.4 in (900 mm)

  • Transport Height: 59.1 in (1500 mm)

  • Bucket Width: 35.4 in (900 mm)

  • Ground Clearance: 3.9 in (100 mm)

  • Engine Brand/Model: RATO (gasoline)

  • Horsepower: 15 HP

  • Rated Speed: 3600 rpm

  • Cooling Method: Air-cooled

  • Fuel Type: Gasoline

  • Bucket Capacity: 0.1 m³

  • Rated Load (Safe Load): 330 lbs (150 kg)

  • Max Load: 660 lbs (300 kg)

  • Max Working Height: 78.7 in (2000 mm)

  • Max Unloading Height: 49.2 in (1250 mm)

  • Max Unloading Distance: 15.7 in (400 mm)

  • Travel Speed: 0–3.1 mph (0–5 km/h)

  • Gradeability: 25%

  • Compact frame for tight-access worksites

  • Easy-to-operate control levers

  • Quick-attach system for multiple attachments

  • Smooth hydraulic lift for precise bucket operation

  • Stable rubber track undercarriage for traction and balance

  • Strong lift capacity relative to size class

  • Pump Type: Gear pump

  • System Pressure: 16 MPa

  • Rated Flow: 18 L/min

  • Auxiliary Hydraulics: Compatible with multiple attachments (grapple, auger, forks, 4-in-1 bucket, and more)

The RIPPA RS03 Skid Steer Loader comes with a 1-Year Parts Warranty. Replacement parts are shipped directly to the customer’s address.

Available Attachments

Energy-efficient engine

The design has a compact structureand powerful performance. Theengine adopts B&S XR2100, whichhas low fuel consumption, smal!vibration and low noise, and hasreached a high level of environmenta!consideration.

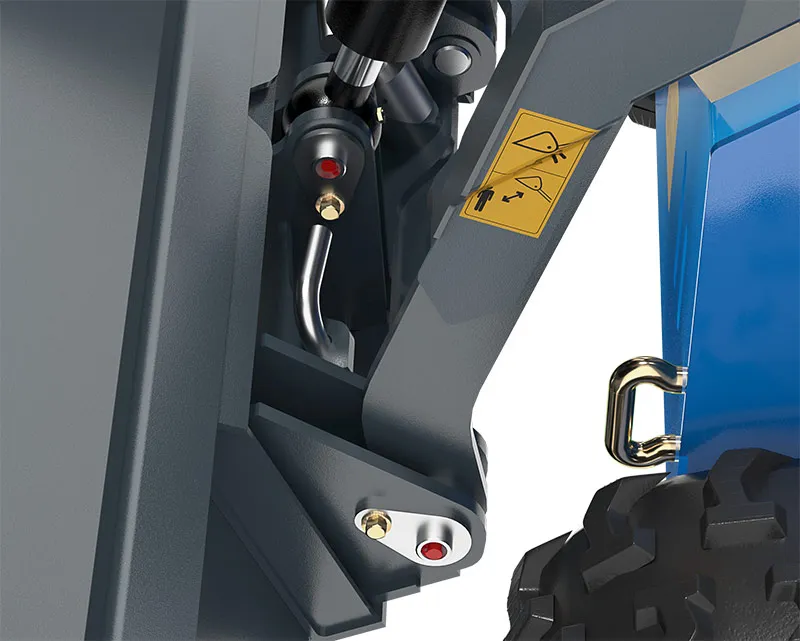

Quick change device

The RS03 quick-change device adopts an industry-wide interface design and is easy to operate. It can complete the replacement of various auxiliary equipment in a short time, significantly improving equipment adaptability and operating efficiency.

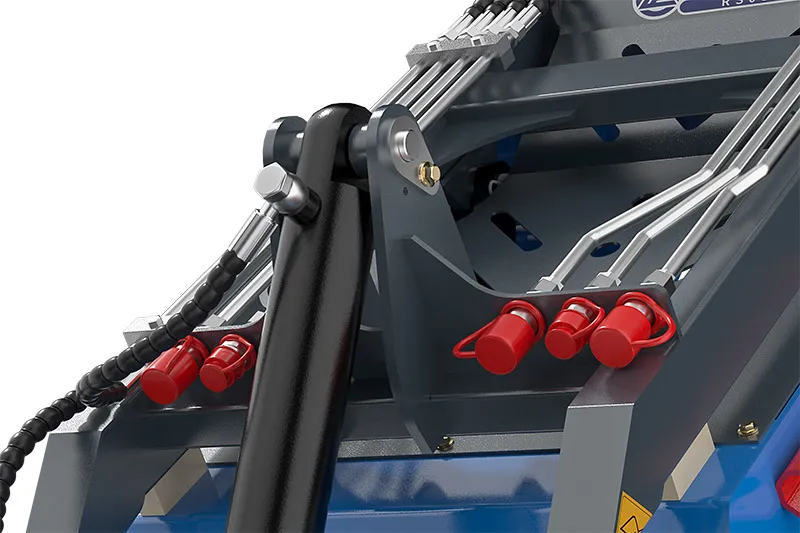

Oil pipe quick connector

The use of durable high-strength materials ensures its reliability and service life under extreme working conditions. The excellent sealing design prevents hydraulic oil leakage and has low maintenance costs. It is simple to install and easy to operate, suitable for a variety of working conditions. It can provide stable hydraulic power transmission, which is an important guarantee for construction efficiency and safety.

Multipurpose Tool Carrier

RIPPA RS03 skid steer loader is an ideal choice for export trade with its excellent performance, efficient operation design, diverse attachment selection and strong brand strength.
