RIPPA R22-1 PRO
in stock

RIPPA R22-1 PRO

Stock is available at the warehouse closest to you, with fast delivery and complete accessories.
Customer service staff is online 24 hours a day to provide you with service.
Fill in your information, get a quote, and become our agent!

Category Tag Brand:

  • Total Weight:
    ▸ 2371.5 kg / 5228.26 lb

  • Counterweight:
    ▸ 174 kg / 383.6 lb

  • Maximum Excavation Depth:
    ▸ 2293 mm / 90.4 in

  • Narrowest Transport Width:
    ▸ 1300 mm / 51.18 in

  • Total Track Length:
    ▸ 3948 mm / 155.5 in

  • Track Specifications (Width × Pitch × Number of Links):
    ▸ 250 mm × 47 mm × 84 Links
    ▸ (9.84 in × 1.85 in × 84L)

  • Ground Clearance:
    ▸ 508 mm / 20 in

  • Engine Brand/Model:
    ▸ Kubota D1105

  • Number of Cylinders:
    ▸ 3

  • Rated Power Output:
    ▸ 18.2 kW / 24.37 hp

  • Number of Main Pump Types:
    ▸ 1 × Variable displacement piston pump

  • Maximum Hydraulic Flow Rate:
    ▸ 67.2 L/min / 17.74 GPM

  • Excavation Depth:
    ▸ Maximum: 2293 mm / 90.4 in

  • Dig Height:
    ▸ 3759 mm / 148 in

  • Ground Clearance:
    ▸ 508 mm / 20 in — suitable for uneven terrain

  • Travel Speed:
    ▸ Two-speed travel system for efficient mobility

  • Hydraulic Flow Rate:
    ▸ Maximum: 67.2 L/min / 17.74 GPM

  • Operating Pressure:
    ▸ Rated: 18 MPa
    ▸ Maximum: 20 MPa

  • Main Hydraulic Pump:
    ▸ Taifeng variable displacement piston pump with load-sensing
    ▸ Automatically adjusts flow and pressure for operator demand

  • Multi-Way Valve:
    ▸ Taifeng 9-way hydraulic valve for precise function control

  • Motors:
    ▸ Plunger motor
    ▸ Cycloidal motor with cushioning for smoother rotation and durability

  • Attachment Ports:
    ▸ 4 hydraulic attachment ports to support a variety of tools

  • Pilot System:
    ▸ 9-way pilot operated

  • Quick Attach System:
    ▸ Equipped (✓)

  • Hydraulic Thumb:
    ▸ Equipped (✓)

  • Swing Boom (Side Swing):
    ▸ Included (✓)

  • Travel Speed:
    ▸ Two-speed

  • Motor Types:
    ▸ Plunger motor
    ▸ Cycloidal motor with cushioning

  • Number of Attachment Ports:
    ▸ 4

  • Hydraulic Oil Cooler:
    ▸ Included (✓)

  • Smart Display System:
    ▸ Included (✓)

  • Hydraulic System Type:
    ▸ Advanced load-sensing system

  • Main Hydraulic Pump:
    ▸ Taifeng variable displacement piston pump
    ▸ Automatically adjusts flow/pressure for operator demand
    ▸ Improves fuel efficiency and reduces engine load

  • Multi-Way Valve:
    ▸ Taifeng 9-way hydraulic valve
    ▸ Enables precise control of multiple functions

  • Hydraulic Flow Rate:
    ▸ Maximum: 67.2 L/min

  • Operating Pressure:
    ▸ Rated Pressure: 18 MPa
    ▸ Maximum Pressure: 20 MPa

  • Hydraulic Component Brands:
    ▸ Taifeng and Likechuan

  • Engine Integration:
    ▸ Powered by Kubota D1105 diesel engine

  • Performance Benefits:
    ▸ Smooth, powerful, and precise operation
    ▸ Enhanced control with reduced energy loss

The RIPPA R22 PRO comes with:

  • 3-Year Comprehensive Machine Warranty (Parts & Service)

  • 3-Year Kubota Engine Warranty

All warranty parts are shipped directly to the customer’s address. Wear items such as tracks, filters, and fluids are excluded.

Excellent basic performance

Kubota D1105 engine has become an ideal power choice for small and medium-sized excavators with its high efficiency and energy-saving fuel economy, strong and reliable power output, good durability and ability to adapt to complex working conditions. Its low noise and easy maintenance characteristics further improve the user experience, reduce operating costs, and ensure long-term efficient operation.

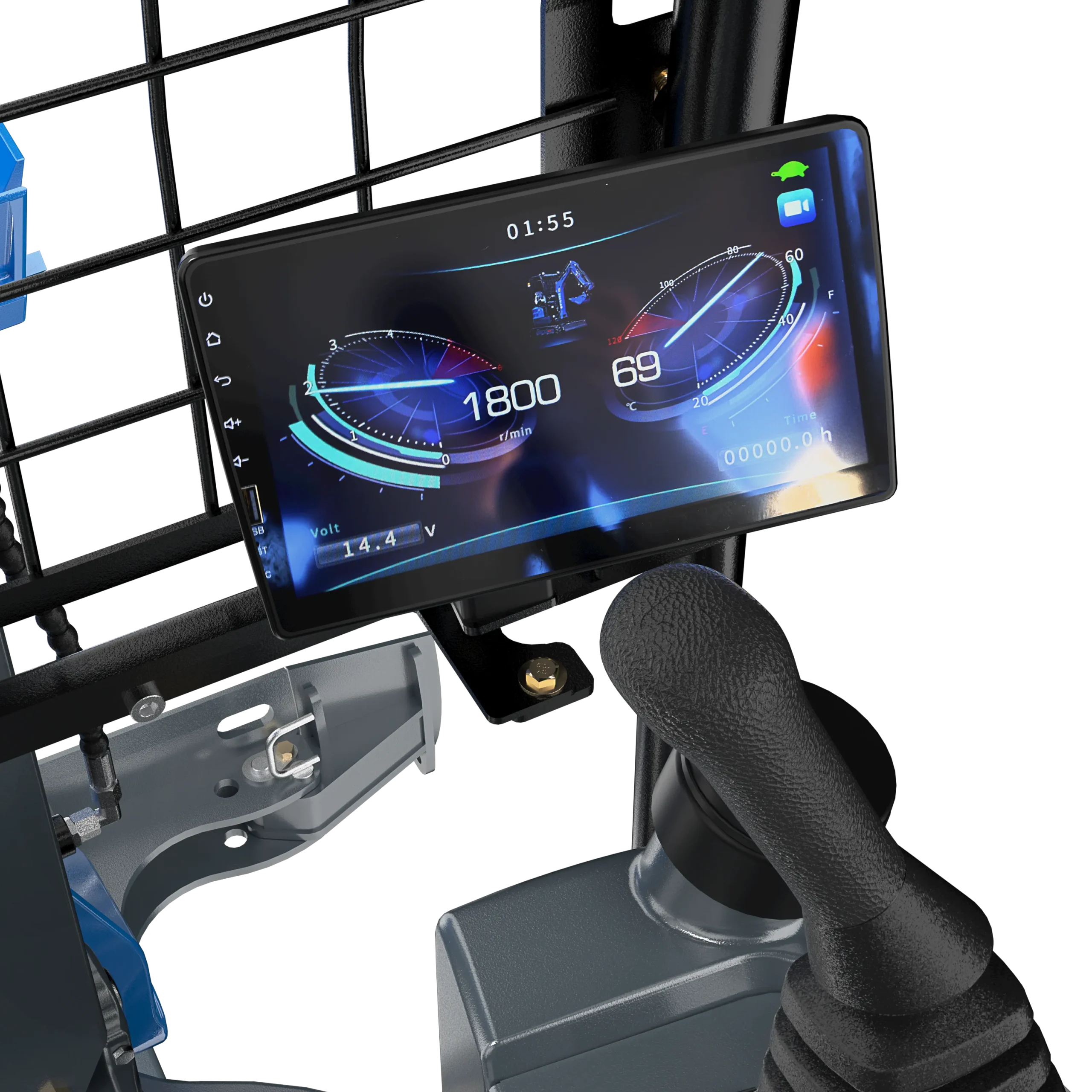

Smart display large screen

The smart large screen can display the various operating parameters of the excavator in real time, such as engine status, oil pressure, hydraulic system status, fuel consumption and temperature, etc., helping the operator to control the working status of the equipment at any time.

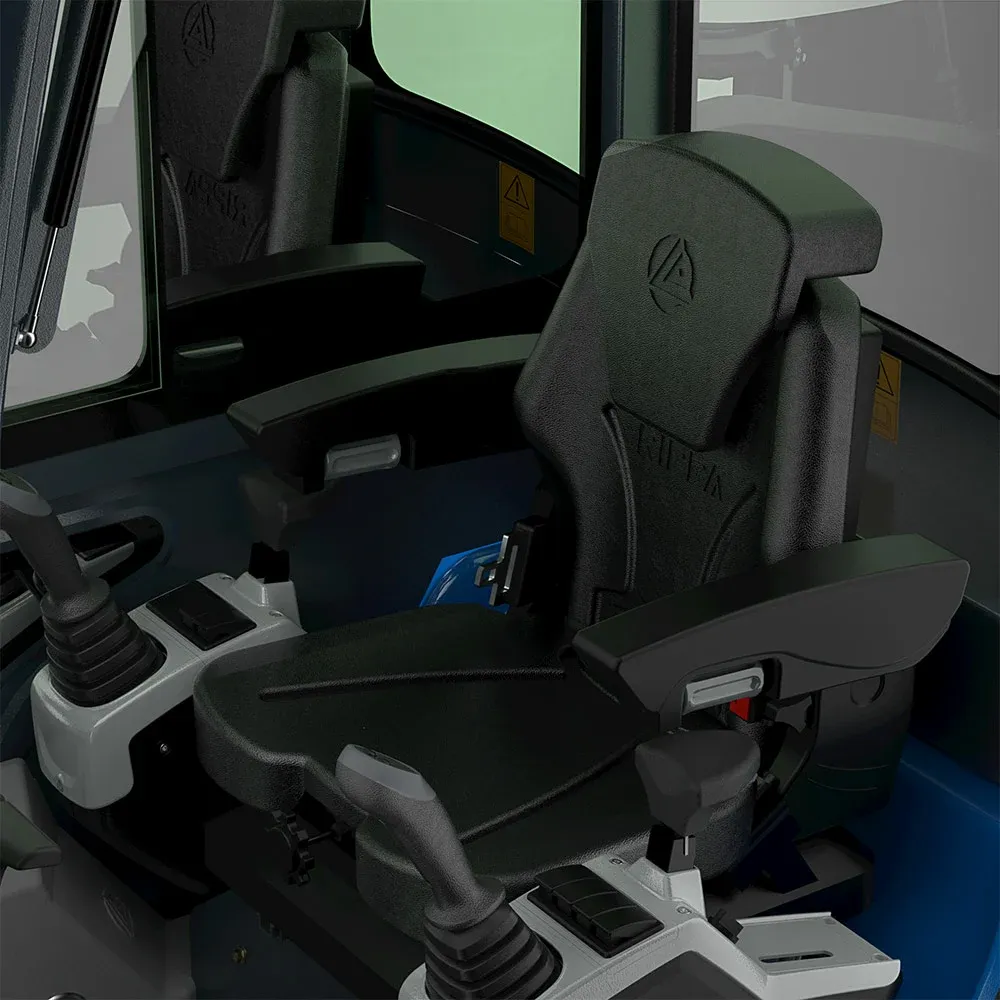

Guidance operating system and comfortable seat design

The R22 model adopts a double-sided pilot control system, which is flexible and smooth to operate and conforms to the ergonomic layout, greatly improving the operation accuracy and construction efficiency. Whether it is detailed excavation or precise backfilling, the operator can easily complete the action through the handle, reducing operator fatigue.

Multipurpose Tool Carrier

The advantages of the R22 mini excavator in terms of environmental protection, high efficiency, safety, user-friendly design, flexibility, easy maintenance, durability and high-performance parameters help attract potential buyers in the international market.
