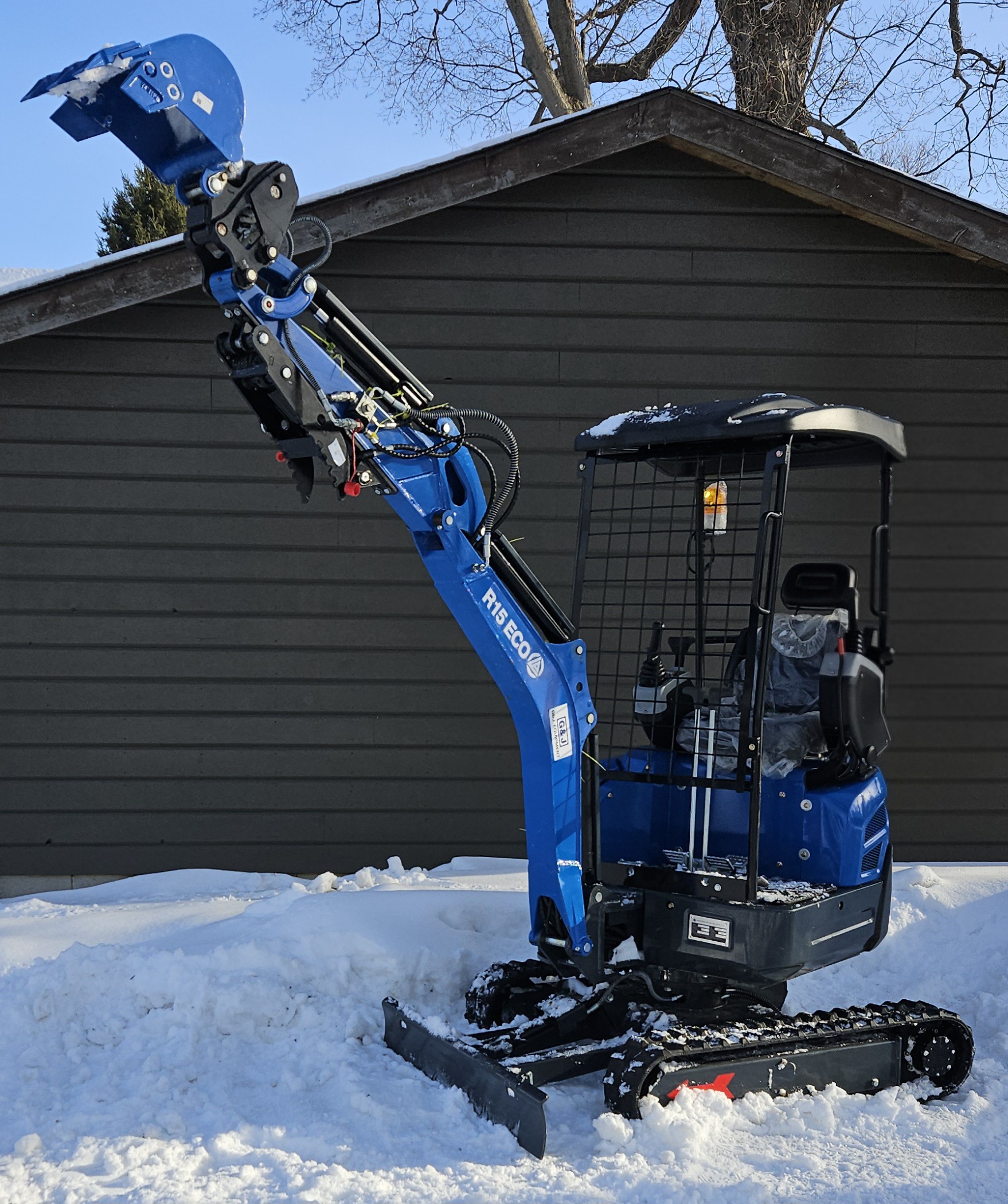

RIPPA R15-5 ECO - Image 3
RIPPA R15-5 ECO - Image 4

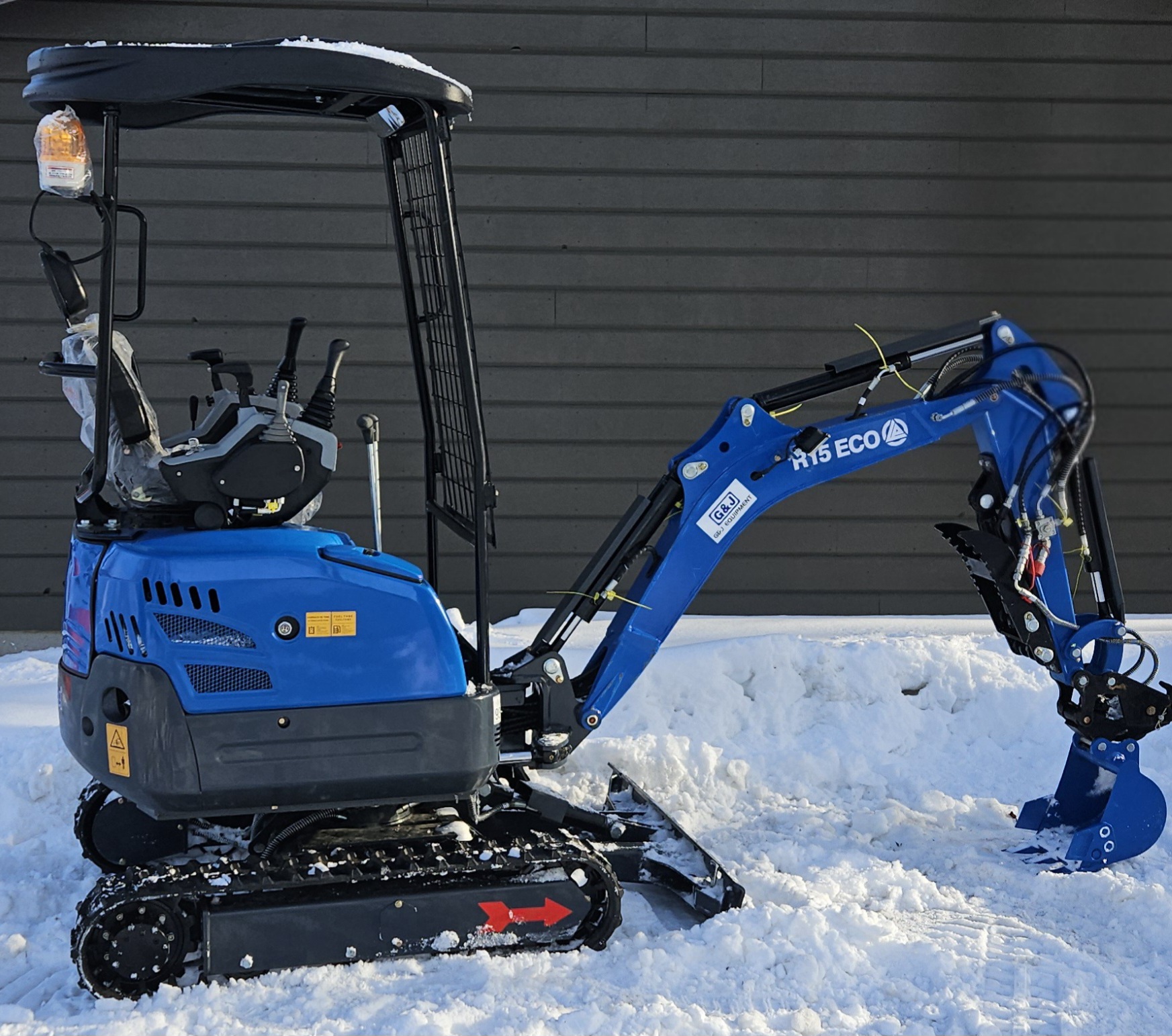

RIPPA R15-5 ECO - Image 5
RIPPA R15-5 ECO - Image 6
RIPPA R15-5 ECO - Image 7

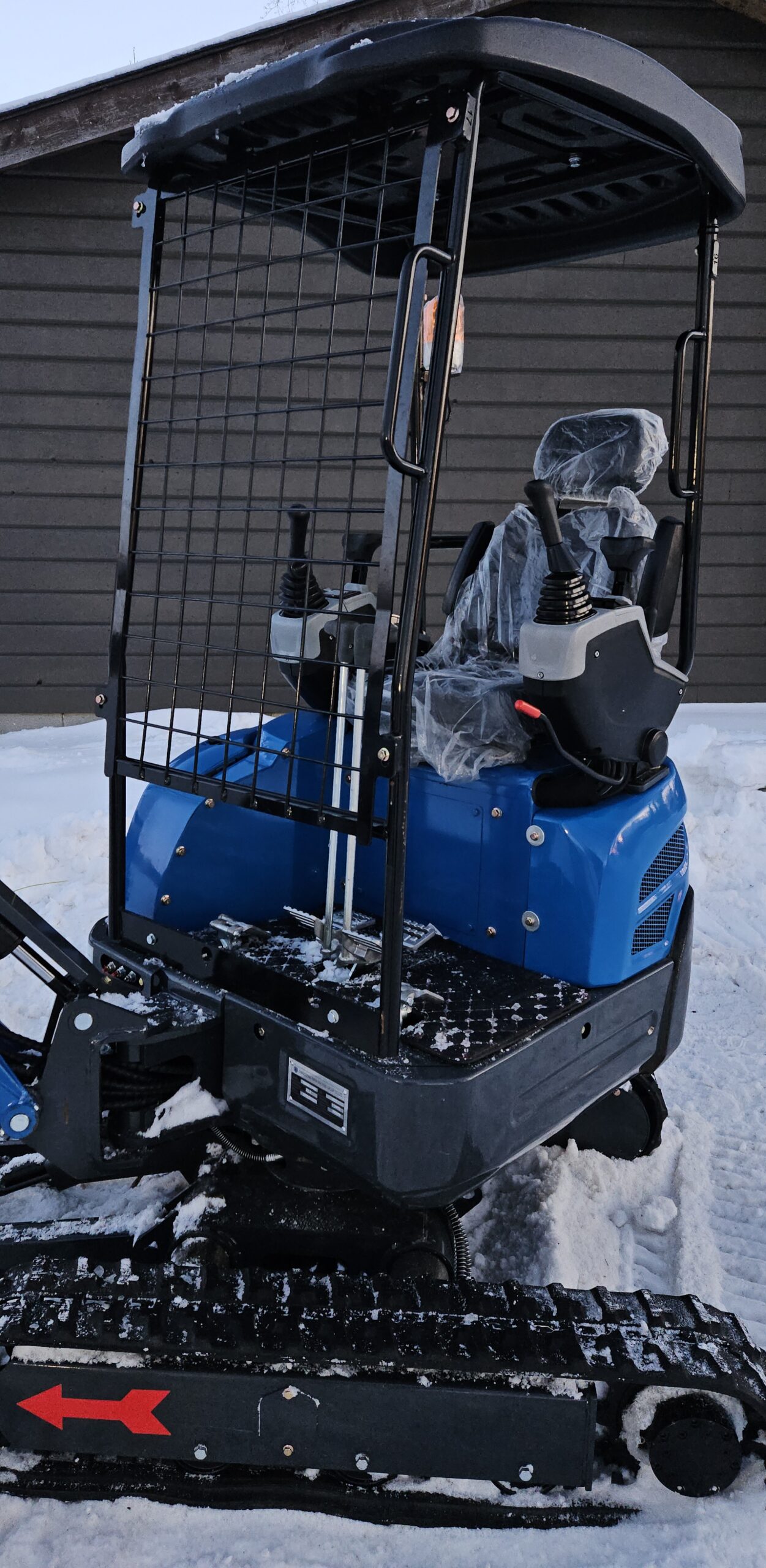

RIPPA R15-5 ECO - Image 8
RIPPA R15-5 ECO - Image 9
RIPPA R15-5 ECO - Image 10
RIPPA R15-5 ECO - Image 11
in stock

RIPPA R15-5 ECO

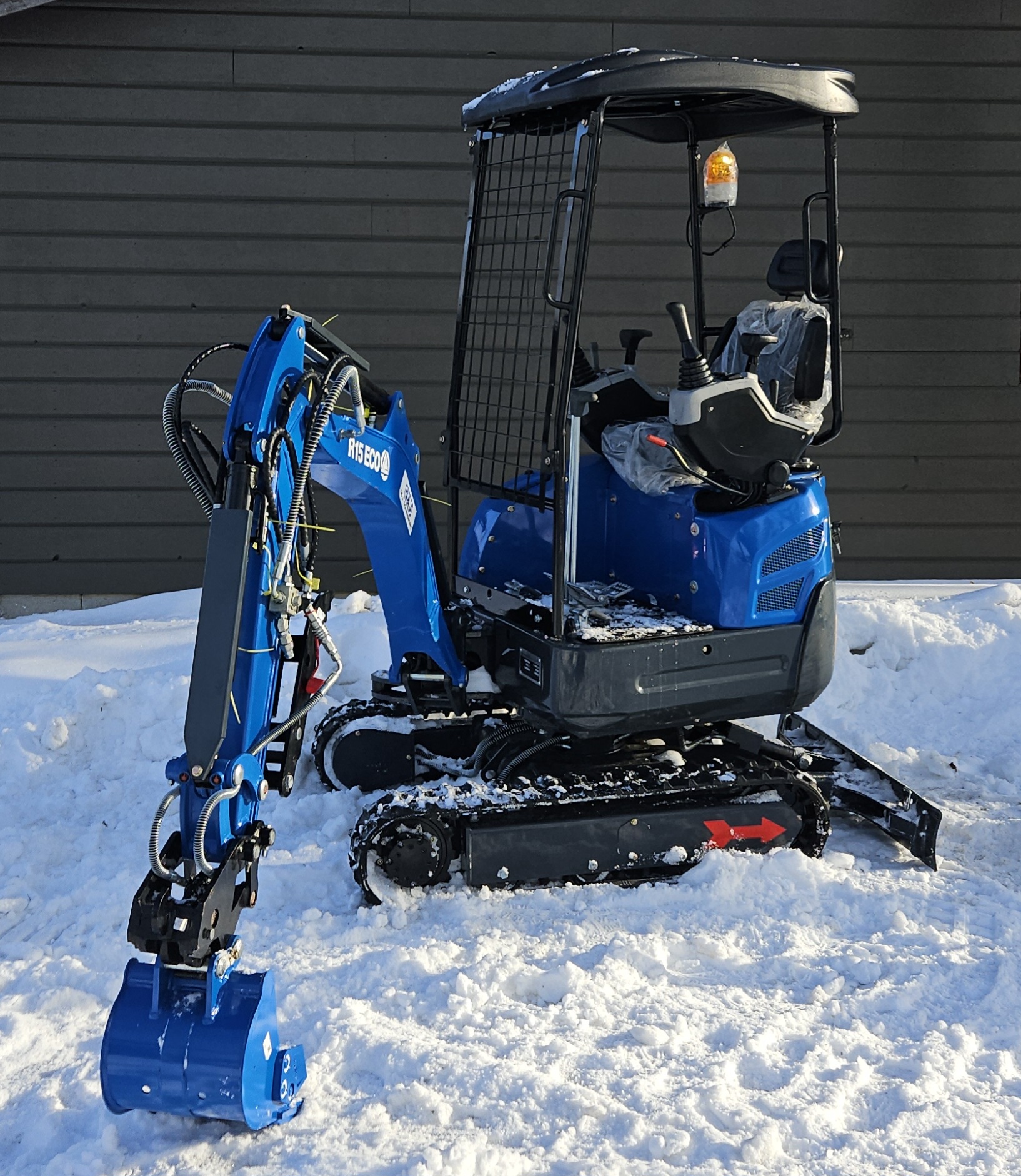

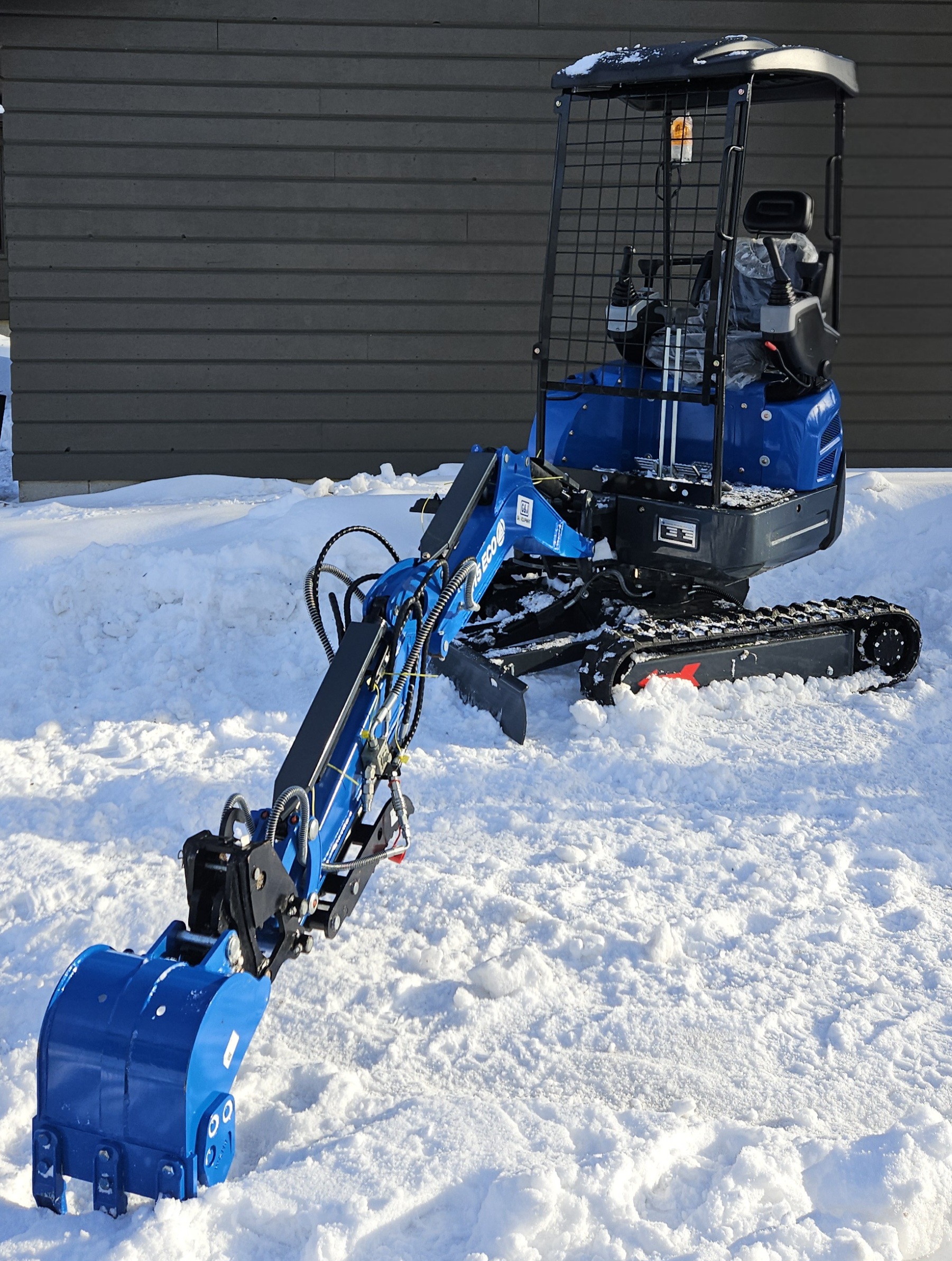

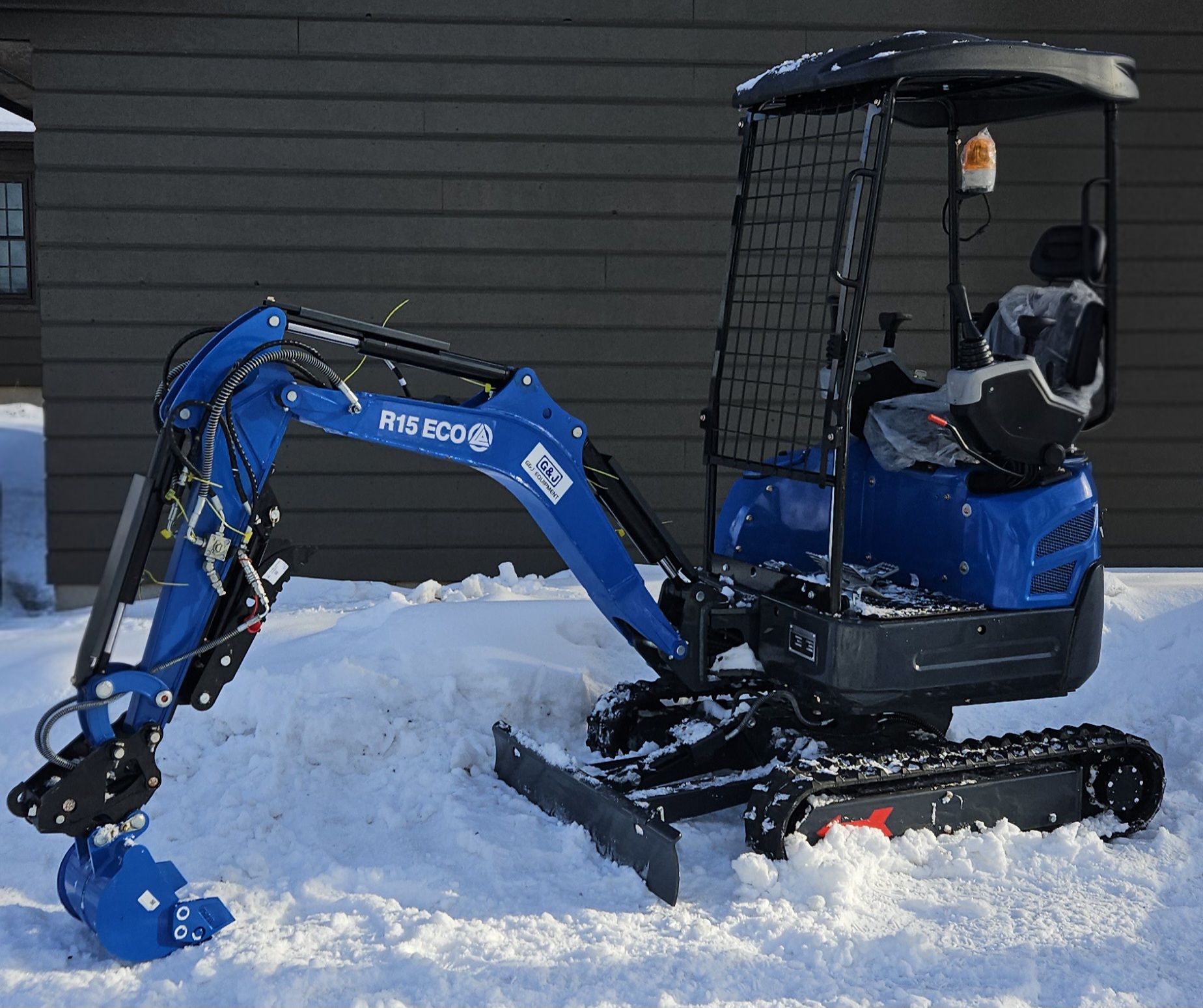

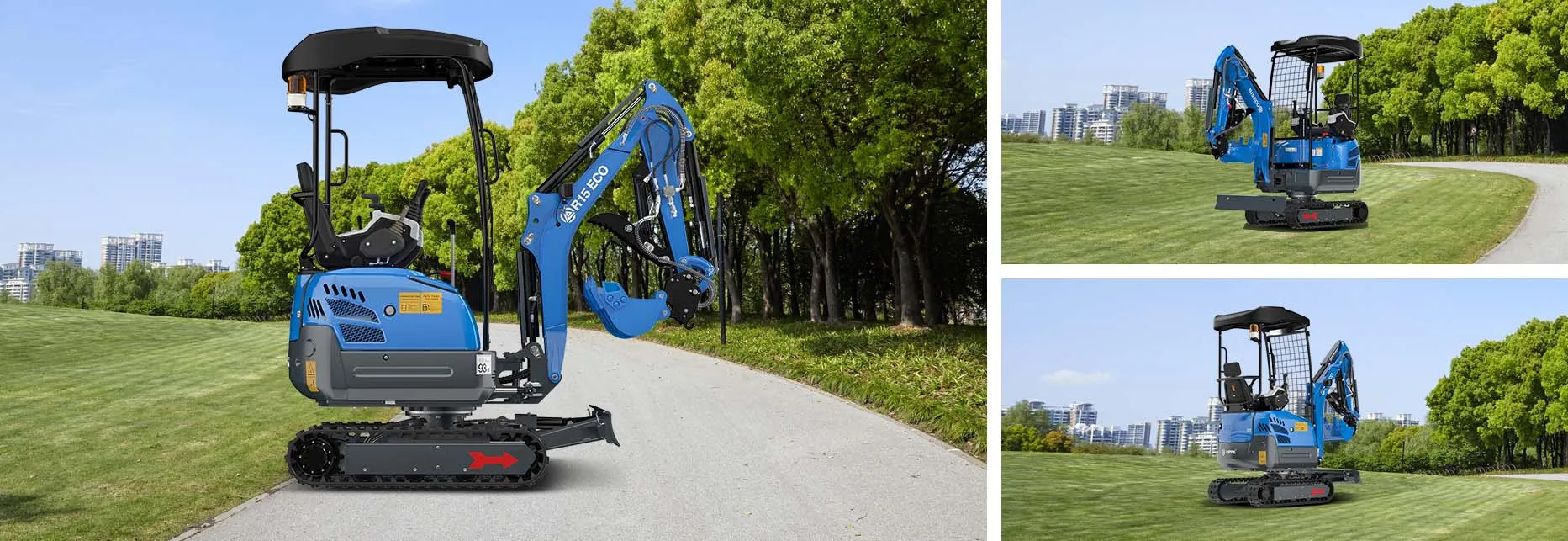

The RIPPA R15 is a compact 1.5-ton mini excavator built for landscaping, trenching, and residential construction work. With its zero tail swing design and telescopic tracks, the R15 navigates tight jobsites and narrow gates while maintaining stability on uneven terrain.

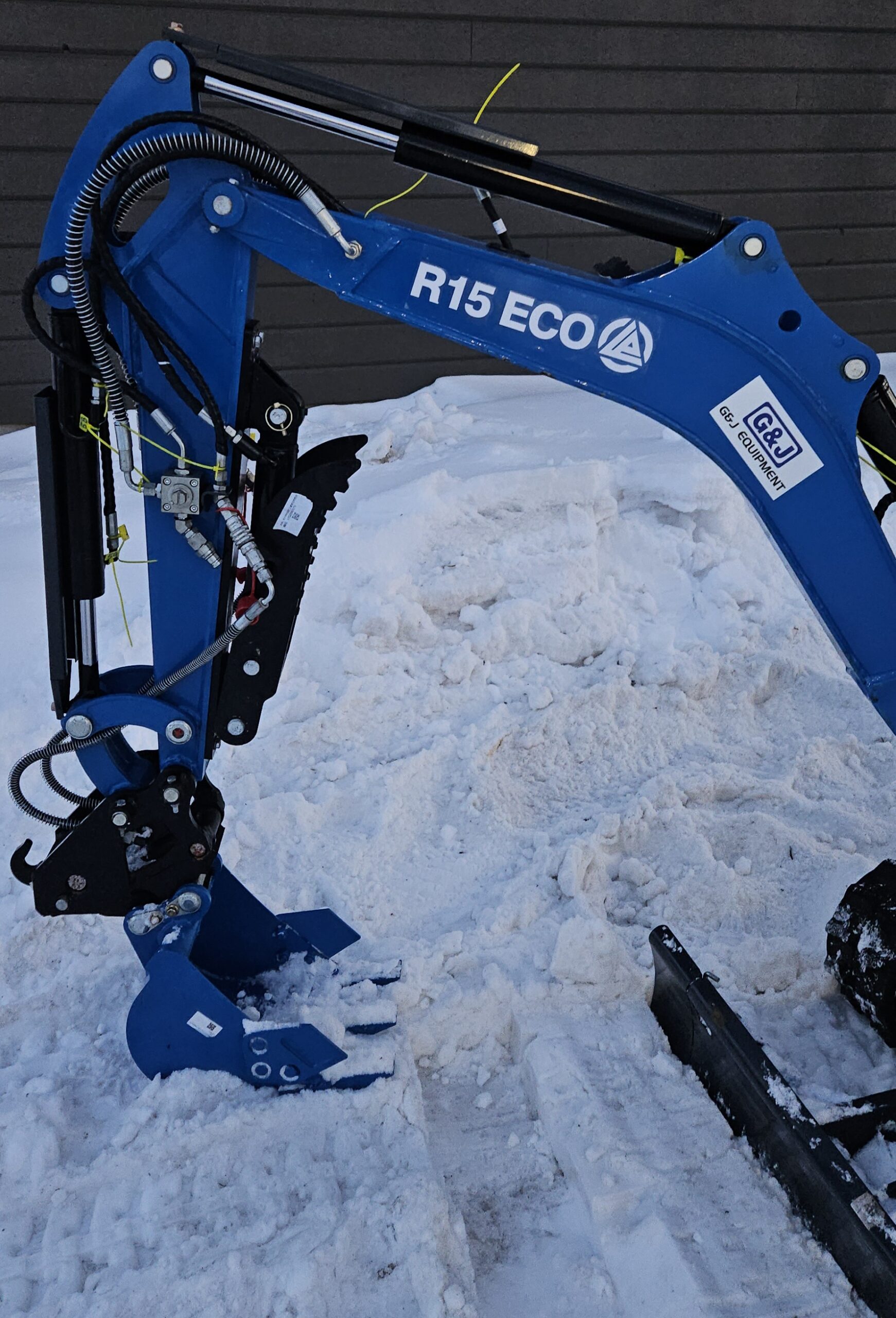

Weighing approximately 1,500 kg, the R15 is easy to transport on a standard trailer while delivering solid digging performance for its size. The machine comes stock with a hydraulic quick coupler and hydraulic thumb, giving you the flexibility to swap attachments quickly and handle materials efficiently without added investment.

Whether you’re digging foundations, installing utilities, or grading yards, the R15 offers the versatility and reliability you need to get the job done.

Category Tags , , , , , , , , , , Brand:

  • Operating weight: 3,307 lb (1500 kg)

  • Transport length: 91 in (7.6 ft)

  • Transport width: 35–46 in adjustable (890–1190 mm)

  • Transport height: 90 in (7.5 ft)

  • Ground clearance: 15.8 in

  • Tail swing radius: 29.9 in

  • Counterweight clearance: 16 in

  • Engine brand: Kubota

  • Engine model: D722, 3-cylinder diesel

  • Displacement: 0.719 L

  • Maximum horsepower: 13.9 HP (10.2 kW)

  • Rated engine speed: 2500 rpm

  • Cooling: Water-cooled

  • Fuel consumption: 1.1–1.5 L/hr

  • Fuel capacity: 3.5 L

  • Bucket capacity: 0.64 ft³ (0.018 m³)

  • Maximum digging depth: 71.1 in (5.9 ft)

  • Maximum digging height: 119 in (9.9 ft)

  • Maximum dumping height: 88.1 in (7.3 ft)

  • Maximum digging radius: 128 in (10.7 ft)

  • Maximum digging force (bucket): 10.4 kN (2,300 lbf)

  • Gradeability: 30%

  • Travel speed: 0.9–1.7 mph

  • Adjustable Track Gauge → reduces width to 35 in for doorways and expands to 46 in for stability

  • Pilot Controls → smooth, responsive handling for operators of all levels

  • Dual-Speed Travel → switch between slow, precise movement and faster site transport

  • Protective ROPS Cab → improves operator safety in rollover conditions

  • LED Work Lights → ensures visibility in low-light conditions

  • Boom Cylinder Protection → steel guards protect critical components from debris and impact

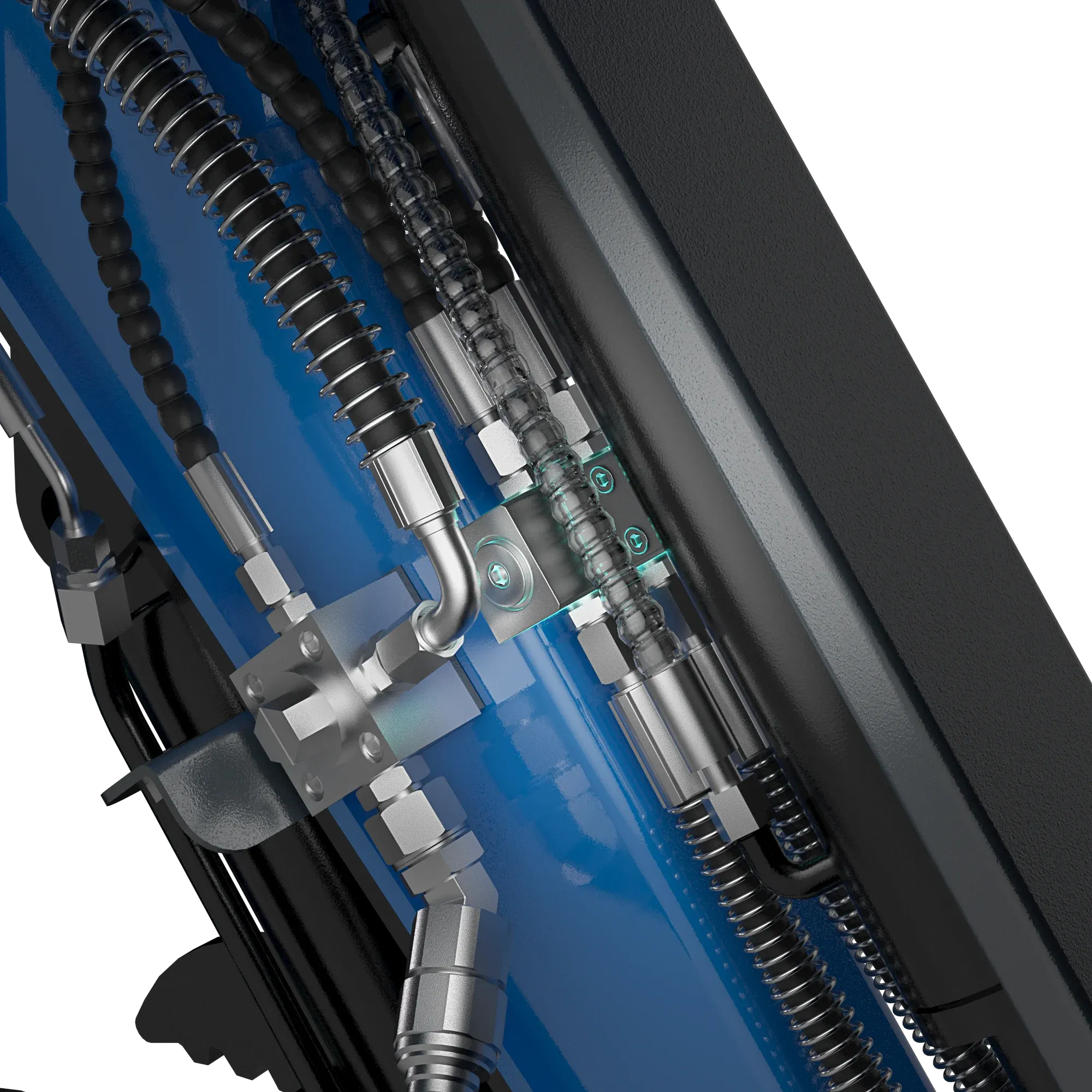

  • Four-Way Hydraulic Quick Connector → supports hydraulic thumbs, breakers, and attachments

  • Built-In Noise Reduction → insulated motor housing for quieter operation

  • Ergonomic Seat & Armrests → adjustable seating reduces fatigue on long shifts

  • Easy Maintenance Access → rear engine cover and footrest panels open wide for daily service

  • Main Hydraulic Pump:
    ▸ 3 × Gear pumps
    ▸ Powered by Kubota D722 diesel engine
    ▸ Maximum flow rate: 21.6 L/min / 5.71 GPM

  • Hydraulic Pressure:
    ▸ Rated operating pressure: 15–17 MPa (2175–2465 psi)

  • Multi-Way Valve:
    ▸ 9-way pilot-operated valve
    ▸ Controls flow to boom, arm, bucket, swing, and dozer blade

  • Hydraulic Motors:
    ▸ Cycloidal travel motors for track movement
    ▸ Swing motor for rotating the upper structure

  • Hydraulic Cylinders:
    ▸ Control movement of boom, arm, and bucket

  • Filtration System:
    ▸ Suction line filter inside the tank
    ▸ Spin-on filter for added protection from contamination

  • Hydraulic Oil Cooler:
    ▸ Included (✓) — helps manage temperature during heavy use

  • Hydraulic Fluid Capacity:
    ▸ Approximately 4–5 gallons (15–19 liters)

The R15 ECO comes with a 2-Year Full Machine Warranty (Parts & Service) and a 3-Year Kubota Engine Warranty.

    • Covered repairs include replacement parts and service support.

    • Warranty claims are fulfilled with parts shipped directly to the customer.

    • Consumables such as rubber tracks, hoses, filters, and fluids are excluded.

Powerful Performance

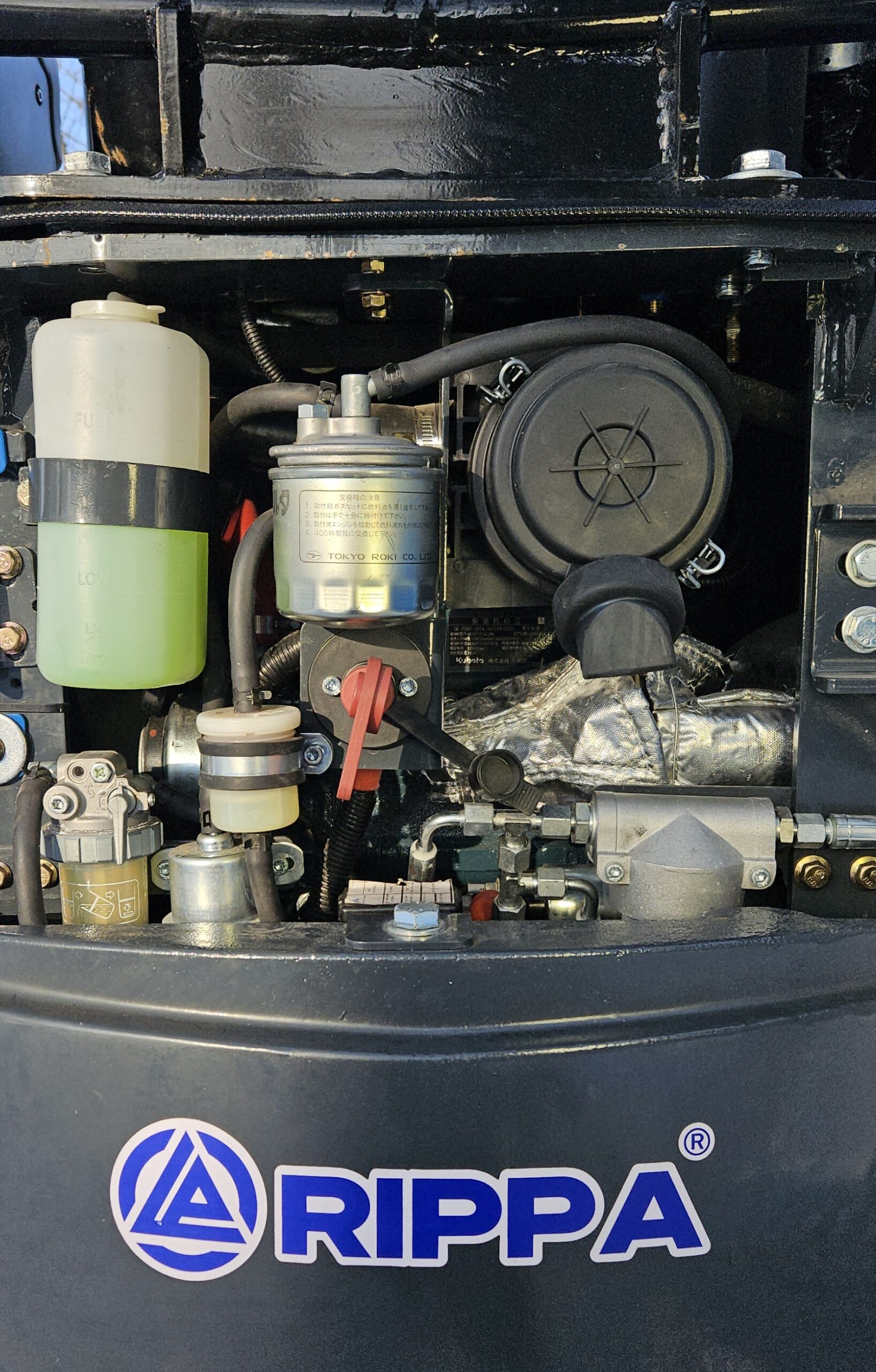

Powered by the proven Kubota D722 three-cylinder water-cooled diesel engine, delivering 10.2 kW (13.9 HP) of reliable power. Known for smooth operation, durability, and easy serviceability, it provides consistent performance for a wide range of small excavation jobs.

Double-sided pilot operation

Equipped with dual pilot joystick controls for smooth, precise operation and reduced operator fatigue. The right armrest console features an integrated multifunction digital display that provides key machine information at a glance, including engine speed, fuel level, oil pressure, voltage, and coolant temperature alerts. This allows operators to easily monitor machine performance and maintain the equipment proactively.

Foldable Dozer Blade and Retractable Tracks - For Hard to Reach Places

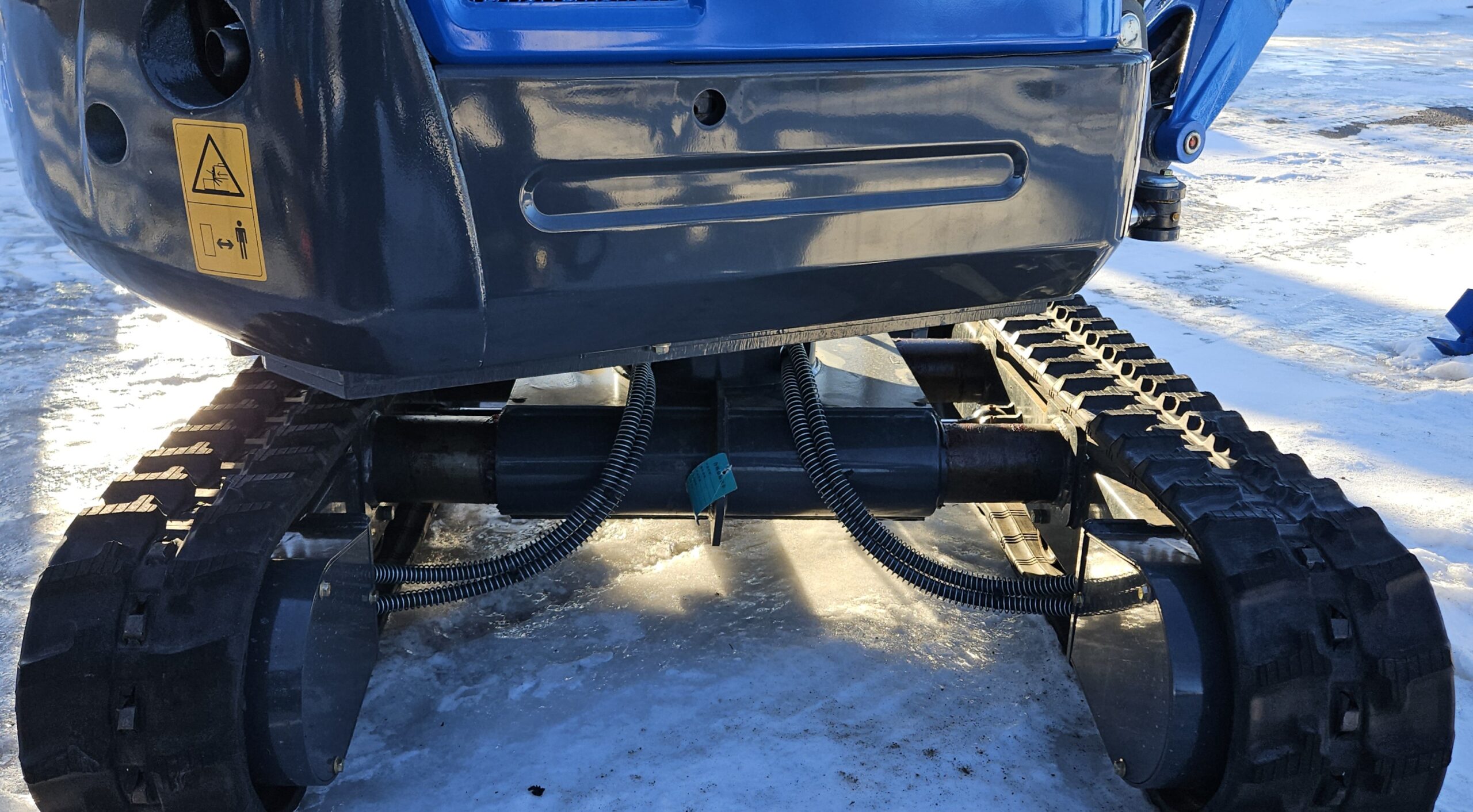

The machine features a dozer blade with adjustable swing-out extensions designed to match the width of the retractable tracks. When the tracks are extended, the blade widens to provide full ground coverage for improved stability, grading performance, and backfilling efficiency. When the tracks are retracted for compact operation or transport, the blade can be folded inward to reduce overall machine width. This design allows the excavator to maintain excellent working stability while still remaining narrow enough to pass through tight access points and fit easily onto trailers or transport vehicles.

Multipurpose Tool Carrier

The R15-5 is designed to work as a true multipurpose tool carrier. With auxiliary hydraulics and a quick-attach system, the machine can easily run a wide range of attachments including buckets, augers, grapples, trenchers, and breakers. This flexibility allows operators to handle excavation, landscaping, property maintenance, fencing, and utility work with a single compact machine.
