RIPPA R13-2 PRO
WhatsApp
Get a quote
RIPPA R13-2 PRO
in stock

RIPPA R13-2 PRO



The RIPPA R13 PRO is a compact 1.3-ton excavator designed for operators who need maximum maneuverability in tight spaces without sacrificing performance. Powered by a Kubota D722 3-cylinder diesel engine, this machine delivers reliable digging force with excellent fuel efficiency, making it ideal for landscapers, contractors, rental fleets, and homeowners with serious projects.

With retractable tracks, boom swing, and hydraulic thumb compatibility, the R13 PRO adapts easily to confined areas such as backyards, greenhouses, and urban worksites. Despite its size, it offers an impressive digging depth of 72 in (6 ft) and a wide working range, giving it the versatility of larger units in a transport-friendly package.

Category Tag

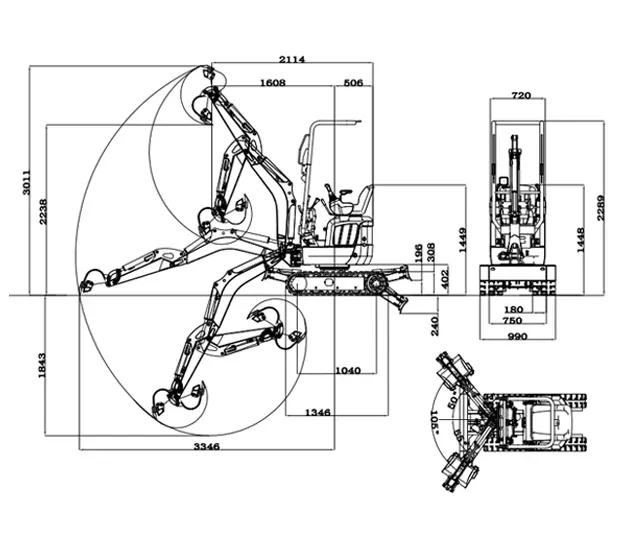

  • Operating weight: 2866 lb (1300 kg)

  • Transport length: 83.2 in (6.9 ft)

  • Transport width: 29.5 in (2.5 ft) (tracks retracted) → 39 in (3.25 ft) (tracks extended)

  • Transport height: 90.1 in (7.5 ft)

  • Ground clearance: 15.8 in

  • Bucket width: 15.7 in

  • Bulldozer blade width: 29.5–39 in (retractable)

  • Engine brand: Kubota

  • Engine model: D722

  • Type: 3-cylinder diesel, water-cooled

  • Maximum horsepower: 13.7 HP

  • Maximum power: 10.2 kW

  • Rated speed: 2500 rpm

  • Displacement: 0.719 L

  • Fuel type: Diesel

  • Fuel consumption: 1.1–1.5 L/hr

  • Fuel tank capacity: 3.5 L

  • Bucket capacity: 0.03 m³ (1.06 ft³)

  • Maximum digging depth: 72.6 in (6.05 ft)

  • Maximum digging radius: 131.7 in (10.9 ft)

  • Maximum digging height: 118.5 in (9.9 ft)

  • Maximum dumping height: 88.1 in (7.3 ft)

  • Maximum deflection angle: 4.1 in

  • Gradeability: 30%

  • Travel speed: 0.9–1.7 mph

  • Maximum digging force: 9.8 kN (2200 lb)

  • Hydraulic Thumb Ready → perfect for gripping rocks, logs, and debris

  • Boom Swing Function → allows offset digging against walls and fences

  • Retractable Tracks (29.5–39 in) → narrow profile for tight access, wide stance for stability

  • Compact Rear Swing → only 11 mm overhang for working close to obstacles

  • Front-Mounted Controls → intuitive and easy for first-time operators

  • Standard Dozer Blade (Retractable) → stabilizes machine and backfills trenches

  • LED Work Light → reliable illumination for low-light conditions

  • ROPS Bar (Optional) → increased operator safety

  • Easy Maintenance → fully opening bonnet, grouped filters, and centralized access

  • Operator Comfort → adjustable sliding seat, low vibration, and ergonomic controls

  • Main pump type: Gear pump

  • Flow rate: 25 L/min

  • Rated pressure: 18 MPa

  • Max system pressure: 20 MPa

  • Main valve: THD12 multi-way valve

  • Travel motor: WDM-390 dual-speed

  • Swing motor: BM2-315

The RIPPA R13 PRO is backed by a 3-Year Full Machine Warranty (parts and service) and a 3-Year Kubota Engine Warranty.

  • All covered repairs include both replacement parts and service support.

  • Warranty claims are handled promptly, and parts are shipped directly to the customer’s address.

  • Normal wear items such as tracks, hoses, and filters are not included.

Powerful Performance

The R13 is a compact, powerful small crawler excavator with a total operating weight of 1,300 kg. It is designed for urban operations, landscaping, orchard construction and narrow space scenarios. The core of the machine is equipped with a Japanese original Kubota D722 three-cylinder water-cooled diesel engine with a maximum output power of 10.2 kW, ensuring strong and stable power output even with a lightweight body.

Two-side pilot operation

Double-side flip-over co-pilot armrest box – safe start design, safer operation Both sides of the R13 excavator are equipped with flip-over co-pilot armrest boxes, which not only improves the convenience of entering and exiting the cab, but also integrates a safe linkage start mechanism: only when the armrest boxes on both sides are flipped over at the same time can the equipment be ignited and started.

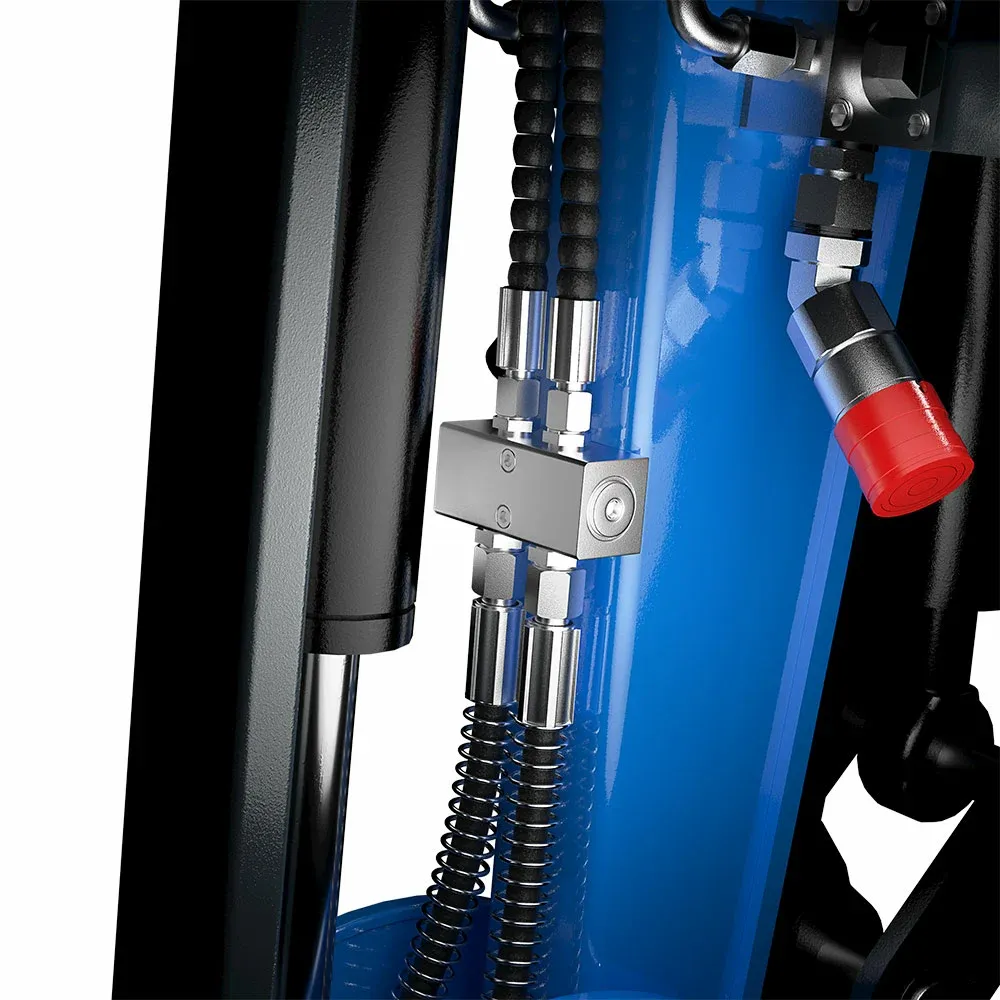

Breakaway dozer hose

The design of the split dozer takes maintenance convenience into full consideration, and its hose system adopts a modular structure. When the hose is accidentally damaged, it can be easily replaced without complicated operations, which significantly shortens the maintenance time.

Multipurpose Tool Carrier

The R13 PRO small excavator is undoubtedly a strong competitor in the export trade market with its excellent narrow space operation ability, high-performance excavation performance, flexible operation mode, safety and protection design, durability and easy maintenance, humanized design, and efficient transportation and storage.
